Earthway C22HD Walkbehind Broadcast Spreader

EarthWay C22HD Spreader Parts at Angelo's Supplies

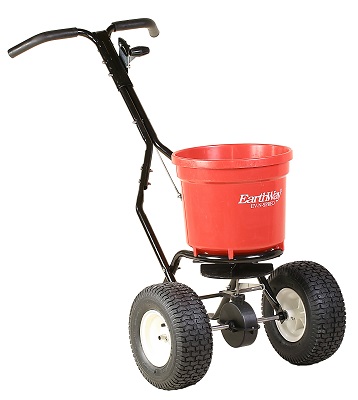

 The C22HD Professional broadcast spreader brings high technology to push spreaders. The C22HD applies ice melting products, grass seed, fertilizer, and all other types of granular lawn and garden products with ease and efficiency. Using the EarthWay® design and engineered EV-N-SPRED® PRO Dual Port Adjustable Shut-Off System, the user can infinitely balance the spread pattern based on material size, weight, and flight characteristics. Equipped with the EarthWay® Twin-Tube chassis; the C22HD has a 250lb/113kg load bearing capacity. The heavy-duty axle support system uses a specially engineered material that creates a smooth bearing surface for the axle, and is maintenance free: no oil, no grease, and no problems. The EarthWay® Super-Duty gearbox sets the performance bar so high that no other manufacturer can reach it. From the strength, to the speed, the Super-Duty gearbox is unsurpassed. The C22HD pushes effortlessly over any terrain, even with a full hopper, the solid linkage, 2-position height adjustable ergonomic handle and“T”-Speed lever provide total operator control and comfort. Equipped with a rustproof poly hopper, the C22HD will give years of superior performance, at an affordable price. Add any of the available accessories and the C22HD becomes the premier powder coated 50lb spreader on the market today.

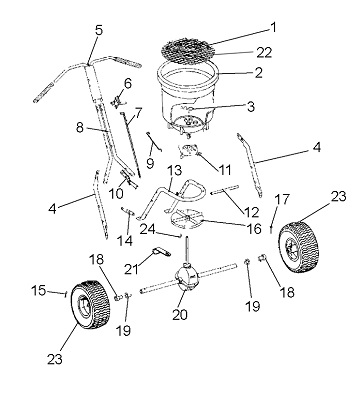

Earthway C22HD Salt,Fertilizer or Seed Spreader Earthway C22HD Salt Fertilizer Spreader Schematic
Location   Item Lookupcode
1   E40002
2   E60152
3   Z100417
4   E25202
5   E60069
6   E60298
7   E42256
8   E25301
9   E44251
10   E60299
11   E12278
12   E24704
13   E25102
14   E41240
15   Z100419
16   E12109
17   Z100418
18   E12152
19   E12148
20   E60333
21   60166R
22   E77001
23   E19117
24   Z100861
25   E24500

27 products in this category, displaying products 1 to 27.
